Fractal Design

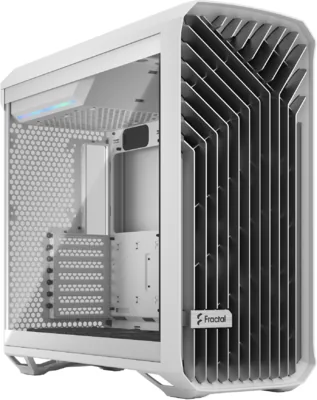

Fractal Design Torrent White TG Clear
MPN: FD-C-TOR1A-03
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- EATX formátum
Árelőzmények
Specifikáció
| Form | EATX |
| Beépített ventillátor | 5 db |
| Max GPU hossz | 461 mm |
| Max táp hossz | 230 mm |
| Max radiátor | 458 mm |
| Radiátor | front 360/420 mm, including 360x180 mm, rear 120/140 mm, bottom 360/420 mm (458 mm max length) |
| Max CPU hűtő | 188 mm |
További Specifikáció
| Rear Fan | 1x 120/140 mm |
| Front Fan | 3x 120/140 mm or 2x 180 mm |
| Bottom Fan | 3x 120/140 mm or 2x 180 mm |
| Net Weight | 11.1 kg |
| Dust Filters | Front, Bottom |
| Gross Weight | 13.7 kg |
| Expansion Slots | 7 |
| Front Interface | 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, HD Audio |
| Left Side Panel | Steel or Tempered glass (RGB version: Tempered glass only) |
| Right Side Panel | Steel or Tempered glass (Solid/White RGB: Steel, TG/Black RGB: Tempered Glass) |
| Total Fan Mounts | 7x 120/140 mm or 4x 180 mm |
| Power Supply Type | ATX |
| Fixed Cable Straps | Yes |
| Cable Routing Space | 32 mm |
| Captive Thumbscrews | HDD brackets, SSD brackets, Top panel, Bottom fan bracket |
| Case Dimensions Lxwxh | 544 x 242 x 530 mm |
| Cable Routing Grommets | Yes |
| Tool Less Push To Lock | Both side panels |
| Package Dimensions Lxwxh | 640 x 343 x 674 mm |
| Dedicated 2 5 Drive Mounts | 4 |
| Dedicated 3 5 Drive Mounts | 2 |
| Gpu Max Length With Front Fan | 423 mm |
| Case Dimensions W O Feet Protrusions Screws Lxwxh | 525 x 242 x 495 mm |
