Audio	Realtek® ALC897 HD Audio, 5.1 Channel with S / PDIF
Bluetooth	5.4
Debug Led	DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
Dimensions	305x244mm
Rear Ports	1× HDMI™, 1× RJ45 LAN, 2× Wi-Fi Antenna / One-click Flash BIOS Button, One-click clear CMOS / 2× USB 2.0, 4× USB 3.2 Gen1 Type-A, 4× USB 3.2 Gen2 Type-A / 2× USB 4.0 40G (DisplayPort Alt mode & 15W PD) Type-C, / 2x Audio Jack+S / PDIF
Cpu Support	AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Pcie M2 Slots	2x PCIe 5.0 M.2, 2x PCIe 4.0 M.2
Front Usb Type A	1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A)
Front Usb Type C	1x USB 3.2 Gen2x2 (30W PD)
Network Ethernet	Realtek® RTL8126 5 Gbps Ethernet
Display Connector	HDMI x1
Network Wifi Band	2.4 GHz / 5GHz / 6GHz
Network Wifi Standard	802.11 a / b / g / n / ac / ax / be
Debug Diagnostic Screen	LED Debug Diagnostic Screen

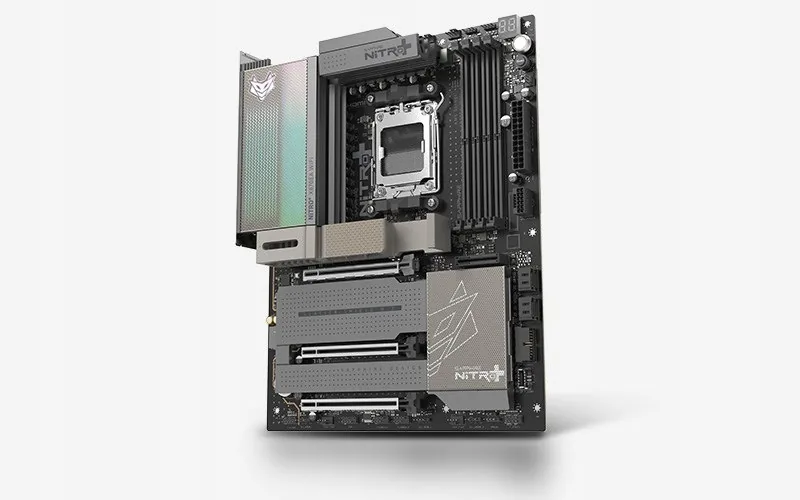

Sapphire NITRO+ X870EA PhantomLink Edition
