MSI

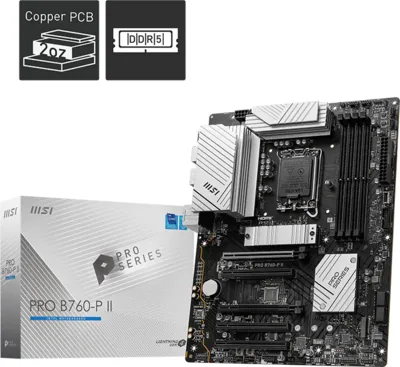

MSI PRO B760-P II
MPN: PRO B760-P II
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- ATX formátum
- LGA1700 kompatibilitás
Árak webshopokban
Legjobb ár
46 050 Ft
MegnézemÁrelőzmények
Specifikáció
| Foglalat | LGA1700 |
| Chipset | B760 |
| M2 csatlakozó | 2 |
| Memória típus | DDR5 |
| Memóriahelyek | 4 |
| Max RAM | 256 GB |
| SATA csatlakozó | 4 |
| Form | ATX |
| Max RAM frekv | 7000 MHz |
| PCIe | 4.0 |
További Specifikáció
| Depth | 304.8 mm |
| Width | 243.8 mm |
| Bios Type | UEFI AMI |
| Audio Chip | Realtek ALC897 |
| Raid Levels | 0, 1, 5, 10 |
| Acpi Version | 6.4 |
| Ethernet Lan | Yes |
| Hdmi Version | 2.1 |
| Raid Support | Yes |
| Component For | PC |
| Lan Controller | Realtek RTL8125-BG |
| Cables Included | SATA |
| Memory Channels | Dual-channel |
| Bios Memory Size | 256 Mbit |
| Drivers Included | Yes |
| Clear Cmos Button | Yes |
| Clear Cmos Jumper | Yes |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | Non-ECC |
| Unbuffered Memory | Yes |
| Usb 2 0 Connectors | 4 |
| 12v Power Connector | Yes |
| Displayport Version | 1.4 |
| Hdmi Ports Quantity | 1 |
| Power Fan Connector | Yes |
| S Pdif Out Connector | Yes |
| Audio Output Channels | 7.1 channels |
| Displayports Quantity | 1 |
| Front Panel Connector | Yes |
| Usb 2 0 Ports Quantity | 4 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Ethernet Lan Rj 45 Ports | 1 |
| Number Of Hdds Supported | 4 |
| Atx Power Connector 24 Pin | Yes |
| Motherboard Chipset Family | Intel |
| Chassis Intrusion Connector | Yes |
| Compatible Processor Series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® Gold |
| Front Panel Audio Connector | Yes |
| Pci Express X1 Gen 3 X Slots | 1 |
| Pci Express X1 Gen 4 X Slots | 2 |
| Pci Express X4 Gen 4 X Slots | 1 |
| Pci Express X16 Gen 4 X Slots | 1 |
| Number Of Storage Drives Supported | 6 |
| Supported Storage Drive Interfaces | PCI Express 4.0, SATA III |
| Usb 3 2 Gen 1 3 1 Gen 1 Connectors | 4 |
| Usb 3 2 Gen 2 3 1 Gen 2 Connectors | 1 |
| Windows Operating Systems Supported | Windows 10 x64, Windows 11 x64 |
| System Management Bios Smbios Version | 3.5 |
| Usb 3 2 Gen 1 3 1 Gen 1 Type A Ports Quantity | 2 |
| Usb 3 2 Gen 2 3 1 Gen 2 Type C Ports Quantity | 1 |
