MSI

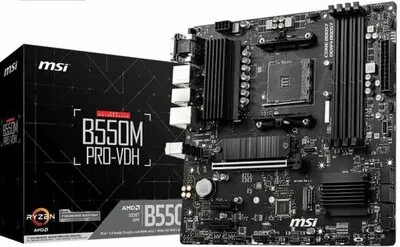

MSI B550M PRO-VDH
MPN: 7C95-017R
Egyéb MPN: B550M PRO-VDH
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- mATX formátum
- AM4 kompatibilitás
Árak webshopokban
Legjobb ár
37 020 Ft
MegnézemÁrelőzmények
Specifikáció
| Foglalat | AM4 |
| Chipset | B550 |
| M2 csatlakozó | 2 |
| Memória típus | DDR4 |
| Memóriahelyek | 4 |
| Max RAM | 128 GB |
| SATA csatlakozó | 4 |
| Form | mATX |
| Max RAM frekv | 4400 MHz |
| PCIe | 4.0 |
További Specifikáció
| Depth | 244 |
| Width | 244 |
| Height | 65 |
| Weight | 1 |
| Raid Levels | 0, 1, 10 |
| Ethernet Lan | Yes |
| Hdmi Version | 2.1 |
| Component For | PC |
| Tpm Connector | Yes |
| Lan Controller | Realtek 8111HN |
| Max Resolution | 4096 x 2160 |
| Cables Included | SATA |
| Memory Channels | Dual-channel |
| Drivers Included | Yes |
| Clear Cmos Jumper | Yes |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | ECC & Non-ECC |
| Unbuffered Memory | Yes |
| Rgb Led Pin Header | Yes |
| Usb 2.0 Connectors | 2 |
| 12v Power Connector | Yes |
| Hdmi Ports Quantity | 1 |
| Serial Port Headers | 1 |
| Audio Output Channels | 7.1 channels |
| Displayports Quantity | 1 |
| Front Panel Connector | Yes |
| Usb 2.0 Ports Quantity | 2 |
| Ethernet Interface Type | Gigabit Ethernet |
| Ethernet Lan (rj-45) Ports | 1 |
| Motherboard Chipset Family | AMD |
| Vga (d-sub) Ports Quantity | 1 |
| Chassis Intrusion Connector | Yes |
| Compatible Processor Series | AMD Ryzen 3000 Series |
| Front Panel Audio Connector | Yes |
| Atx Power Connector (24-pin) | Yes |
| Supported Storage Drive Types | HDD & SSD |
| Pci Express X1 (gen 3.x) Slots | 2 |
| Pci Express X16 (gen 4.x) Slots | 1 |
| Number Of Chassis Fan Connectors | 3 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity | 4 |
