Lan Chip	Realtek RTL8125D
Audio Chip	Realtek ALC897
Com Header	1
Display Dp	DP (supports up to 4K@120Hz)
Argb Headers	2 × 3-pin
Display Hdmi	HDMI™ 2.0 (supports up to 4K@60Hz)
Nrgb Headers	1 × 4-pin
Cpu Fan Header	1 × 4-pin
Pump Fan Header	1 × 4-pin (supports DC regulation)
Wireless Module	Intel® AX201
Xmp Frequencies	4800/5600/6400/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC) MHz
Bluetooth Version	5.2
Cpu Compatibility	Intel® Core™ Ultra processors
Rear Usb 5g Type A	4
Sff 8654 Interface	1 × SFF-8654 4i interface (supports PCIe 4.0 x4/x2 or 4x SATA 6Gb/s)
Chassis Fan Headers	4 × 4-pin
Rear Usb 10g Type A	2
Rear Usb 2 0 Type A	2
Rear Usb 40g Type C	1
Atx Power Connectors	1 × 24-pin
Clr Cmos Reset Header	1
Onboard Usb 5g Header	1
Form Factor Dimensions	305 × 245 mm
M2 Slot Pcie 4 0 X4 X2	3
M2 Slot Pcie 5 0 X4 X2	1
Onboard Usb 20g Type C	1
Onboard Usb 2 0 Header	1
Plus 12v Power Connectors	2 × 8-pin
Expansion Slots Pcie 4 0 X1	2
Expansion Slots Pcie 4 0 X4	1
Expansion Slots Pcie 5 0 X16	configurable as x8+x8 or x8+x4+x4

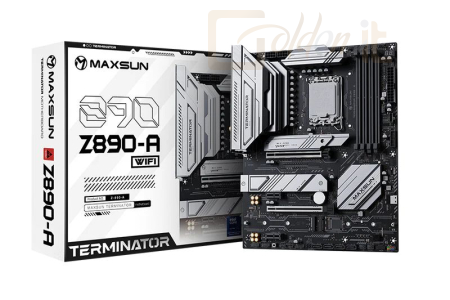

Maxsun Terminator Z890-A WIFI
