MAXSUN

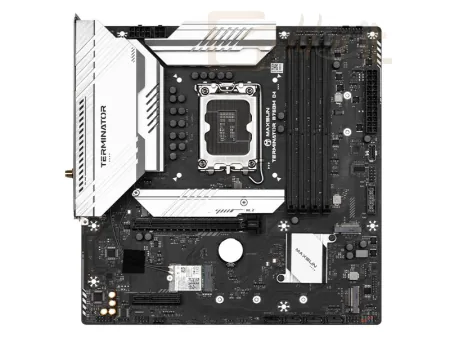

Maxsun Terminator B760M D4 WIFI V2
MPN: MS-TERMINATOR B760M D4 WIFI V2
Build infó
Illeszkedés
- mATX formátum
- LGA1700 kompatibilitás
Árelőzmények
Specifikáció
| Foglalat | LGA1700 |
| Chipset | B760 |
| M2 csatlakozó | 3 |
| Memória típus | DDR4 |
| Memóriahelyek | 4 |
| Max RAM | 128 GB |
| SATA csatlakozó | 4 |
| Form | mATX |
| Max RAM frekv | 5333 MHz |
| PCIe | 5.0 |
További Specifikáció
| Lan Speed | 2.5G |
| Audio Codec | Realtek® ALC897 |
| Cpu Support | 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| Led Feature | 4x Distributed Debug LED |
| Hdmi Version | 1.4 |
| Raid Support | RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio Channels | 5.1 |
| M2 Slot 1 Mode | PCIe 4.0 x4 |
| M2 Slot 1 Type | 2242/2280 |
| M2 Slot 2 Mode | PCIe 4.0 x4 |
| M2 Slot 2 Type | 2242/2280/22110 |
| M2 Slot 3 Mode | PCIe 4.0 x4 |
| M2 Slot 3 Type | 2242/2280/22110 |
| Rear Usb Ports | 2x USB 5G, 6x USB 2.0 |
| Front Usb Ports | 1x USB 20G (Type-E), 2x USB 5G, 2x USB 2.0 |
| Sata Ports Speed | 6Gb/s |
| Pcie Slot 2 Width | x4 |
| Displayport Version | 1.4 |
| Hdmi Max Resolution | 4K@30Hz |
| Pcie Slot 2 Version | 3.0 |
| Form Factor Dimensions | 245mm x 245mm |
| Internal Io Connectors | 1x 24-pin Power Connector(ATX_PWR), 1x 8+4-pin Power Connector(CPU_PWR), 1x CPU Fan, 3x System Fan, 3x M.2 slots (Key-M), 4x SATA 6Gb/s ports, 2x 5V 3-Pin ARGB, 1x 12V 4-Pin RGB, 1x Clear CMOS, 1x 4-Pin SPEAKER, 1x Front Audio, 1x M.2 slots (Key-E), 1x COM_A Port, 1x TPM pin header(Support TPM 2.0) |
| Operating System Support | Windows® 11 64-bit, Windows® 10 64-bit |
