Bluetooth	Bluetooth 5.4
Audio Codec	Realtek ALC1220
Fan Headers	1 x 4 Pin CPU fan header, 4 x 4 Pin chassis fan headers
Pump Header	1 x 4 Pin (supports DC adjustment)
Argb Headers	2 x 3 Pin
Ethernet Lan	Realtek RTL8126
Nrgb Headers	1 x 4 Pin
Supported Os	Windows 10 64-bit, Windows 11 64-bit, Ubuntu 64-bit
Sata Interface	SATA 6Gb/s
Expansion Slots	1 x PCIe 5.0 x16 slot (splittable to X8+X8/X8+X4+X4), 1 x PCIe 5.0 x16 slot (supports PCIe 5.0 x8 or split to PCIe 5.0 x4+x4), 2 x PCIe 4.0 x16 slots (supporting PCIe 4.0 x4)
Graphics Support	1 x HDMI™ 2.1 (up to 4K @120Hz), 1 x DisplayPort 1.4 (up to 4K @120Hz)
Other Connectors	1 x COM port header, 1 x CLR CMOS reset header
Tápcsatlakozó	1 x 24 Pin ATX, 2 x 8 Pin +12V
Onboard Usb Ports	1 x USB 20G Type-C® front panel port, 1 x USB 5G 19Pin header (supports 2 additional USB 5G ports), 1 x USB 2.0 9Pin header (supports 2 additional USB 2.0 ports)
M2 Slot 1 Interface	PCIe 5.0 x4/x2
Rear Panel Usb Ports	2 x USB 40G Type-C® ports (supports up to 15W power output), 9 x USB 10G Type-A ports
Form Factor Dimensions	305 x 245mm
M2 Slot 2 3 4 Interface	PCIe 4.0 x4/x2
M2 Slot 1 Length Support	2242/2280
Additional Storage Interface	1 x SFF-8654 4i (supports PCIe 4.0 x4/x2 or 4 x SATA 6Gb/s)
M2 Slot 2 3 4 Length Support	2242/2280/22110

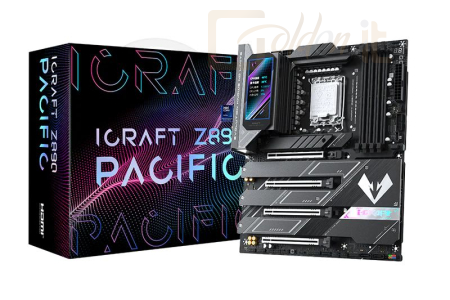

Maxsun iCraft Z890 PACIFIC
