Audio Codec	Realtek ALC1220
Cpu Support	AMD® Ryzen™ 7000 / 8000 / 9000 Series processors
Pump Header	1 × 4-pin
Argb Headers	3 × 3-pin
Nrgb Headers	1 × 4-pin
Ethernet Port	Realtek RTL8126 5Gb
Cpu Fan Header	1 × 4-pin
Com Port Header	1
Display Outputs	1 × HDMI™ 2.0 (up to 4K@60Hz), 1 × DisplayPort 1.4 (up to 4K@60Hz)
Wireless Module	MediaTek MT7925
Amd Expo Support	true
Tápcsatlakozó	1 × 24-pin ATX, 2 × 8-pin +12V CPU
Sata Ports Speed	6Gb/s
Bluetooth Version	5.4
Chassis Fan Headers	4 × 4-pin
Expansion Slots Cpu	1 × PCIe x16 slot (up to PCIe 5.0 x16/x8), 1 × PCIe x16 slot (up to PCIe 5.0 x8 or x4+x4 when bifurcation enabled; requires PCIeX16_A switch; Ryzen 8000 disables this slot)
M2 Slot A Interface	PCIe 5.0 x4/x2
M2 Slot B Interface	PCIe 5.0 x4/x2
M2 Slot C Interface	PCIe 4.0 x4/x2
M2 Slot D Interface	PCIe 4.0 x4/x2
Rear Usb Type A 10g	4
Rear Usb Type A 2.0	4
Rear Usb Type C 10g	1
Supported Ram Speeds	4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6600(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7400(OC) / 7600(OC) / 8000(OC) / 8200(OC) / 8400(OC)
Clr Cmos Reset Header	1
Form Factor Dimensions	305 × 245 mm
M2 Slot A Form Factors	2242/2280
M2 Slot B Form Factors	2242/2280/22110
M2 Slot C Form Factors	2242/2280/22110
M2 Slot D Form Factors	2242/2280/22110
Expansion Slots Chipset	1 × PCIe x1 slot (PCIe 3.0 x1 mode)
Dual Channel Architecture	true
Onboard Usb 2.0 4pin Header	1
Onboard Usb 2.0 9pin Header	1
Onboard Usb 5g 19pin Header	1
Onboard Usb Type C 20g Header	1

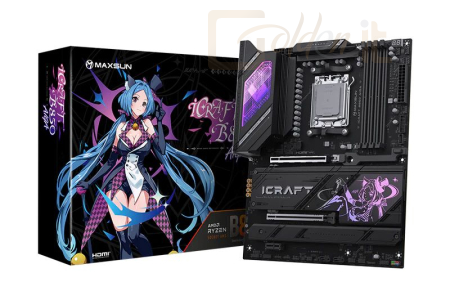

Maxsun iCraft B850 AIGA
