Gigabyte

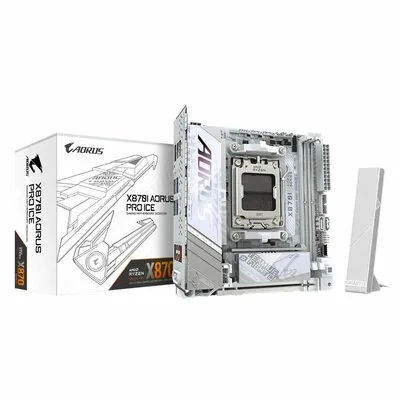

GIGABYTE X870I AORUS PRO ICE
MPN: X870I AORUS PRO ICE
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- ITX formátum
- AM5 kompatibilitás
Árelőzmények
Specifikáció
| Wifi | Wi-Fi 7 (802.11be) |
| Foglalat | AM5 |
| Chipset | X870 |
| M2 csatlakozó | 2 |
| Memória típus | DDR5 |
| Memóriahelyek | 2 |
| Max RAM | 128 GB |
| SATA csatlakozó | 2 |
| Form | ITX |
| Max RAM frekv | 8400 MHz |
| PCIe | 5.0 |
További Specifikáció
| Hdcp | Yes |
| Depth | 170 mm |
| Width | 170 mm |
| Height | 35 mm |
| Weight | 1.2 kg |
| Line In | Yes |
| Bios Type | UEFI AMI |
| Bluetooth | Yes |
| Audio Chip | Realtek ALC4080 |
| Dmi Version | 2.7 |
| Raid Levels | 0, 1 |
| Acpi Version | 5.0 |
| Ethernet Lan | Yes |
| Hdmi Version | 2.1 |
| Raid Support | Yes |
| Component For | PC |
| Package Depth | 227 mm |
| Package Width | 235 mm |
| Lan Controller | Realtek RTL8125 |
| Max Resolution | 4096 x 2160 pixels |
| Package Height | 95 mm |
| Package Weight | 1.28 kg |
| Product Colour | White |
| Smbios Version | 2.7 |
| Wifi Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Directx Version | 12.0 |
| Memory Channels | Dual-channel |
| Screws Included | Yes |
| Antenna Included | Yes |
| Bios Memory Size | 256 Mbit |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Bluetooth Version | 5.4 |
| Clear Cmos Jumper | Yes |
| Country Of Origin | Taiwan |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | Non-ECC |
| Headphone Outputs | 1 |
| Power Source Type | ATX |
| Batteries Included | Yes |
| Rgb Led Pin Header | Yes |
| Usb 2 0 Connectors | 1 |
| Atx Power Connector | Yes |
| Displayport Version | 1.4 |
| Hdmi Ports Quantity | 1 |
| Pc Health Monitoring | Fan, Temperature, Voltage, Water cooling |
| Wifi Ap Antenna Jack | 2 |
| Audio Output Channels | 7.1 channels |
| Front Panel Connector | Yes |
| Wlan Controller Model | Realtek RTL8922AE |
| Usb 2 0 Ports Quantity | 2 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| 1st M 2 Largest Key Size | 2280 |
| 2nd M 2 Largest Key Size | 2280 |
| Ethernet Lan Rj 45 Ports | 1 |
| Usb 3 2 Gen 1 Connectors | 1 |
| Usb 3 2 Gen 2 Connectors | 1 |
| Eps Power Connector 8 Pin | Yes |
| Motherboard Chipset Family | AMD |
| Chassis Intrusion Connector | Yes |
| Compatible Processor Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Front Panel Audio Connector | Yes |
| Usb4 Gen 2x2 Ports Quantity | 1 |
| Number Of Cpu Fan Connectors | 2 |
| Number Of Rgb Led Pin Headers | 3 |
| Pci Express X16 Gen 5 X Slots | 1 |
| Supported Storage Drive Types | HDD & SSD |
| Number Of Water Pump Connectors | 1 |
| Number Of Chassis Fan Connectors | 1 |
| Supported Storage Drive Interfaces | M.2, SATA III |
| Usb 3 2 Gen 1 Type A Ports Quantity | 2 |
| Usb 3 2 Gen 2 Type A Ports Quantity | 2 |
| Usb 3 2 Gen 2 Type C Ports Quantity | 1 |
| Windows Operating Systems Supported | Windows 11 x64 |
| Number Of Eps Power Connectors 8 Pin | 1 |
| 1st M 2 Highest Pci Express Generation | 5.0 |
| 2nd M 2 Highest Pci Express Generation | 4.0 |
