Gigabyte

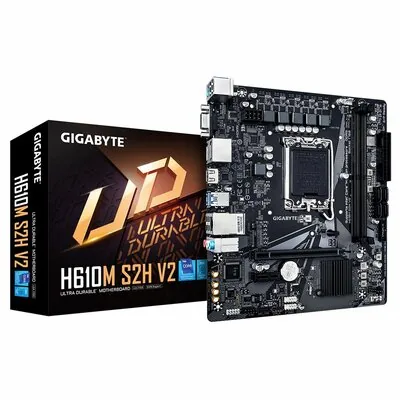

GIGABYTE H610M S2H V2
MPN: H610M S2H V2
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- mATX formátum
- LGA1700 kompatibilitás
Árak webshopokban
Legjobb ár
15 990 Ft
MegnézemÁrelőzmények
Specifikáció
| Foglalat | LGA1700 |
| Chipset | H610 |
| M2 csatlakozó | 1 |
| Memória típus | DDR5 |
| Memóriahelyek | 2 |
| Max RAM | 96 GB |
| SATA csatlakozó | 4 |
| Form | mATX |
| Max RAM frekv | 5600 MHz |
| PCIe | PCIe 3.0 |
További Specifikáció
| Hdcp | Yes |
| Depth | 215 mm |
| Width | 230 mm |
| Height | 35 mm |
| Bios Type | UEFI AMI |
| Audio Chip | Realtek ALC897 |
| Acpi Version | 5.0 |
| Battery Type | CR2032 |
| Cooling Type | Active |
| Ethernet Lan | Yes |
| Component For | PC |
| Graphics Card | HD Graphics |
| Microphone In | Yes |
| Package Depth | 235 mm |
| Package Width | 265 mm |
| Battery Weight | 3 g |
| Package Height | 52 mm |
| Package Weight | 690 g |
| Product Colour | Black |
| Tp M Connector | Yes |
| Cables Included | SATA |
| Memory Channels | Dual-channel |
| Bios Memory Size | 128 Mbit |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Clear Cmos Button | Yes |
| Clear Cmos Jumper | Yes |
| Country Of Origin | China |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | ECC & Non-ECC |
| Headphone Outputs | 1 |
| Power Source Type | ATX |
| Unbuffered Memory | Yes |
| Batteries Included | Yes |
| Battery Technology | Lithium-Manganese Dioxide (LiMnO2) |
| Maximum Resolution | 4096 x 2304 pixels |
| Rgb Led Pin Header | Yes |
| Usb 2 0 Connectors | 2 |
| 12v Power Connector | Yes |
| Hdmi Ports Quantity | 1 |
| Ps 2 Ports Quantity | 1 |
| Serial Port Headers | 1 |
| Dvi D Ports Quantity | 1 |
| Graphics Card Family | Intel |
| Pc Health Monitoring | Fan, LED, Temperature, Voltage, Water cooling |
| Pci Express X1 Slots | 1 |
| Audio Output Channels | 7.1 channels |
| Front Panel Connector | Yes |
| Number Of M 2 M Slots | 1 |
| Pci Express X16 Slots | 1 |
| Display Ports Quantity | 1 |
| On Board Graphics Card | Yes |
| Usb 2 0 Ports Quantity | 4 |
| Ethernet Interface Type | Gigabit Ethernet |
| Motherboard Form Factor | micro ATX |
| Number Of Battery Cells | 1 |
| Ethernet Lan Rj 45 Ports | 1 |
| Number Of Com Connectors | 1 |
| Number Of Hdds Supported | 4 |
| Vga D Sub Ports Quantity | 1 |
| Eps Power Connector 8 Pin | Yes |
| Hybrid Phases Digital Vrm | 4+1+1 |
| Atx Power Connector 24 Pin | Yes |
| Lithium Weight Per Battery | 0.07 g |
| Motherboard Chipset Family | Intel |
| Compatible Processor Series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Front Panel Audio Connector | Yes |
| On Board Graphics Card Model | Intel® HD Graphics |
| Number Of Sata Iii Connectors | 4 |
| Supported Storage Drive Types | HDD & SSD |
| Number Of Chassis Fan Connectors | 2 |
| Products Per Shipping Inner Case | 1 pc(s) |
| Number Of Storage Drives Supported | 1 |
| Supported Memory Module Capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB, 8GB, 16GB |
| Supported Storage Drive Interfaces | M.2, SATA |
| Usb 3 2 Gen 1 3 1 Gen 1 Connectors | 1 |
| Windows Operating Systems Supported | Windows 10 x64, Windows 11 x64 |
| System Management Bios Smbios Version | 2.7 |
| Desktop Management Interface Dmi Version | 2.7 |
| Usb 3 2 Gen 1 3 1 Gen 1 Type A Ports Quantity | 2 |
