Gigabyte

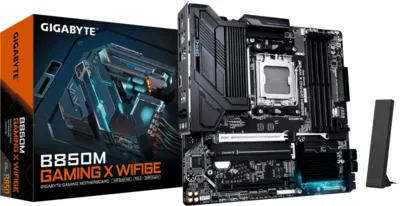

GIGABYTE B850M GAMING X WIFI6E
MPN: B850M GAMING X WF6E
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- mATX formátum
- AM5 kompatibilitás
Árak webshopokban
Legjobb ár
63 440 Ft
MegnézemÁrelőzmények
Specifikáció
| Wifi | Wi-Fi 6E |
| Foglalat | AM5 |
| Chipset | B850 |
| M2 csatlakozó | 2 |
| Memória típus | DDR5 |
| Memóriahelyek | 4 |
| Max RAM | 256 GB |
| SATA csatlakozó | 4 |
| Form | mATX |
| Max RAM frekv | 8200 MHz |
| PCIe | 5.0 |
További Specifikáció
| Hdcp | Yes |
| Depth | 244 |
| Width | 244 |
| Height | 35 |
| Weight | 1.54 |
| Bios Type | UEFI AMI |
| Bluetooth | Yes |
| Audio Chip | Realtek ALC897 |
| Raid Levels | 0, 1, 10 |
| Acpi Version | 5.0 |
| Battery Type | CR2032 |
| Ethernet Lan | Yes |
| Hdmi Version | 2.1 |
| Raid Support | Yes |
| Component For | PC |
| Microphone In | Yes |
| Package Depth | 268 |
| Package Width | 270 |
| Tpm Connector | Yes |
| Battery Weight | 3 |
| Max Resolution | 4096 x 2160 |
| Package Height | 68 |
| Package Weight | 1.75 |
| Product Colour | Brown |
| Wifi Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Directx Version | 12.0 |
| Memory Channels | Dual-channel |
| Screws Included | Yes |
| Antenna Included | Yes |
| Bios Memory Size | 256 Mbit |
| Bundled Software | Norton Internet Security (OEM version), LAN bandwidth management software |
| Bluetooth Version | 5.3 |
| Clear Cmos Button | Yes |
| Clear Cmos Jumper | Yes |
| Country Of Origin | China |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | Non-ECC |
| Headphone Outputs | 1 |
| Power Source Type | ATX |
| Batteries Included | Yes |
| Battery Technology | Lithium-Manganese Dioxide (LiMnO2) |
| Rgb Led Pin Header | Yes |
| Usb 2.0 Connectors | 2 |
| 12v Power Connector | Yes |
| Displayport Version | 2.1 |
| Hdmi Ports Quantity | 1 |
| Serial Port Headers | 1 |
| Pc Health Monitoring | Fan, Temperature, Voltage, Water cooling |
| Wifi-ap Antenna Jack | 2 |
| Audio Output Channels | 7.1 channels |
| Displayports Quantity | 1 |
| Front Panel Connector | Yes |
| Wlan Controller Model | Realtek RTL8852CE |
| Usb 2.0 Ports Quantity | 4 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Number Of Battery Cells | 1 |
| Number Of M.2 (m) Slots | 2 |
| 1st M.2 Largest Key Size | 25110 |
| 2nd M.2 Largest Key Size | 22110 |
| Ethernet Lan (rj-45) Ports | 1 |
| Lithium Weight Per Battery | 0.07 |
| Motherboard Chipset Family | AMD |
| Compatible Processor Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Eps Power Connector (8-pin) | Yes |
| Front Panel Audio Connector | Yes |
| Atx Power Connector (24-pin) | Yes |
| Number Of Cpu Fan Connectors | 2 |
| Number Of Rgb Led Pin Headers | 4 |
| Number Of Sata Iii Connectors | 4 |
| Supported Storage Drive Types | HDD & SSD |
| Number Of Water Pump Connectors | 2 |
| Pci Express X16 (gen 3.x) Slots | 1 |
| Pci Express X16 (gen 5.x) Slots | 1 |
| Products Per Shipping (inner) Case | 1 pc(s) |
| Supported Storage Drive Interfaces | M.2, SATA III |
| Windows Operating Systems Supported | Windows 10 x64, Windows 11 x64 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Connectors | 1 |
| 1st M.2 Highest Pci Express Generation | 5.0 |
| 2nd M.2 Highest Pci Express Generation | 4.0 |
| Number Of Eps Power Connectors (8-pin) | 1 |
| System Management Bios (smbios) Version | 2.7 |
| Desktop Management Interface (dmi) Version | 2.7 |
| Peripheral (molex) Power Connectors (4-pin) | 1 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity | 2 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity | 1 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity | 1 |
