Gigabyte

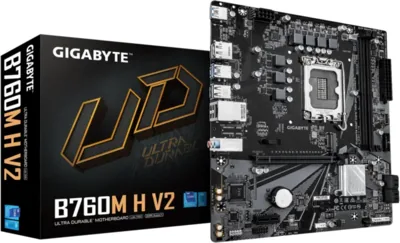

GIGABYTE B760M H V2
MPN: B760M H V2
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- mATX formátum
- LGA1700 kompatibilitás
Árak webshopokban
Legjobb ár
25 790 Ft
MegnézemÁrelőzmények
Specifikáció
| Foglalat | LGA1700 |
| Chipset | B760 |
| M2 csatlakozó | 1 |
| Memória típus | DDR5 |
| Memóriahelyek | 2 |
| Max RAM | 128 GB |
| SATA csatlakozó | 4 |
| Form | mATX |
| Max RAM frekv | 8000 MHz |
| PCIe | 4.0 |
További Specifikáció
| Depth | 220 mm |
| Width | 244 mm |
| Height | 35 mm |
| Weight | 770 g |
| Line-in | Yes |
| Bios Type | UEFI AMI |
| Audio Chip | Realtek ALC897 |
| Raid Levels | 0, 1, 5, 10 |
| Acpi Version | 5.0 |
| Battery Type | CR2032 |
| Cooling Type | Passive |
| Hdcp Version | 2.3 |
| Hdmi Version | 2.1 |
| Raid Support | Yes |
| Component For | PC |
| Microphone In | Yes |
| Package Depth | 265 mm |
| Package Width | 265 mm |
| Tpm Connector | Yes |
| Battery Weight | 3 g |
| Lan Controller | Realtek RTL8111H |
| Package Height | 54 mm |
| Package Weight | 850 g |
| Product Colour | Dark brown |
| Directx Version | 12.0 |
| Memory Channels | Dual-channel |
| Screws Included | Yes |
| Warranty Period | 3 year(s) |
| Battery Capacity | 220 mAh |
| Bios Memory Size | 128 Mbit |
| Bundled Software | Norton® Internet Security (OEM version) |
| Clear Cmos Jumper | Yes |
| Country Of Origin | China |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | ECC & Non-ECC |
| Headphone Outputs | 1 |
| Power Source Type | ATX |
| Unbuffered Memory | Yes |
| Batteries Included | Yes |
| Battery Technology | Lithium-Manganese Dioxide (LiMnO2) |
| Maximum Resolution | 4096 x 2304 pixels |
| Rgb Led Pin Header | Yes |
| Usb 2 0 Connectors | 1 |
| 12v Power Connector | Yes |
| Displayport Version | 1.2 |
| Hdmi Ports Quantity | 1 |
| Serial Port Headers | 1 |
| Pc Health Monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio Output Channels | 7.1 channels |
| Displayports Quantity | 1 |
| Front Panel Connector | Yes |
| Usb 2 0 Ports Quantity | 4 |
| Ethernet Interface Type | Gigabit Ethernet |
| Number Of Battery Cells | 1 |
| 1st M 2 Largest Key Size | 2280 |
| Number Of HdDs Supported | 4 |
| Ethernet Lan (rj-45) Ports | 1 |
| Lithium Weight Per Battery | 0.07 g |
| Motherboard Chipset Family | Intel |
| Compatible Processor Series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
| Eps Power Connector (8-pin) | Yes |
| Front Panel Audio Connector | Yes |
| Atx Power Connector (24-pin) | Yes |
| Max Internal Memory Per Slot | 64 GB |
| Number Of Cpu Fan Connectors | 1 |
| Number Of Rgb Led Pin Headers | 2 |
| Supported Memory Clock Speeds | 8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,4800,4000 MHz |
| Supported Storage Drive Types | HDD & SSD |
| Pci Express X1 (gen 3.x) Slots | 1 |
| Pci Express X16 (gen 4.x) Slots | 1 |
| Number Of Chassis Fan Connectors | 2 |
| Number Of Storage Drives Supported | 5 |
| Products Per Shipping (inner) Case | 1 pc(s) |
| Supported Storage Drive Interfaces | M.2, PCI Express 4.0, SATA III |
| Windows Operating Systems Supported | Windows 10 x64, Windows 11 x64 |
| Usb 3 2 Gen 1 (3 1 Gen 1) Connectors | 2 |
| 1st M 2 Highest Pci Express Generation | 4.0 |
| Number Of Eps Power Connectors (8-pin) | 1 |
| Parallel Processing Technology Support | Not supported |
| System Management Bios (smbios) Version | 2.7 |
| Desktop Management Interface (dmi) Version | 2.7 |
| Usb 3 2 Gen 1 (3 1 Gen 1) Type-a Ports Quantity | 3 |
