Gigabyte

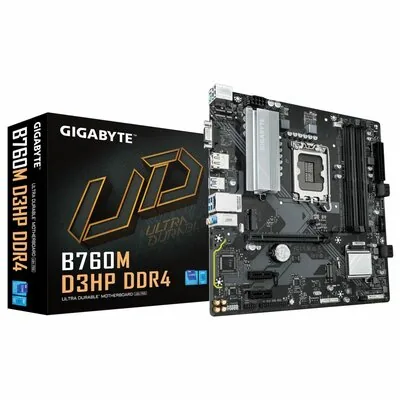

GIGABYTE B760M D3HP DDR4
MPN: B760M D3HP DDR4
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- mATX formátum
- LGA1700 kompatibilitás
Árak webshopokban
Legjobb ár
31 850 Ft
MegnézemÁrelőzmények
Specifikáció
| Foglalat | LGA1700 |
| Chipset | B760 |
| M2 csatlakozó | 2 |
| Memória típus | DDR4 |
| Memóriahelyek | 4 |
| Max RAM | 128 GB |
| SATA csatlakozó | 4 |
| Form | mATX |
| Max RAM frekv | 5333 MHz |
| PCIe | 4.0 |
További Specifikáció
| Hdcp | Yes |
| Depth | 244 mm |
| Width | 244 mm |
| Height | 35 mm |
| Line In | Yes |
| Bios Type | UEFI AMI |
| Raid Levels | 0, 1, 5, 10 |
| Acpi Version | 5.0 |
| Battery Type | CR2032 |
| Ethernet Lan | Yes |
| Hdmi Version | 2.1 |
| Raid Support | Yes |
| Usb 3 2 Gen1 | Yes |
| Component For | PC |
| Microphone In | Yes |
| Package Depth | 265 mm |
| Package Width | 265 mm |
| Tpm Connector | Yes |
| Battery Weight | 3 g |
| Max Resolution | 4096 x 2304 pixels |
| Package Height | 54 mm |
| Package Weight | 990 g |
| Product Colour | Brown |
| Audio Connector | Yes |
| Directx Version | 12.0 |
| Gb Ethernet Lan | Yes |
| Memory Channels | Dual-channel |
| Warranty Period | 3 year(s) |
| Bios Memory Size | 128 Mbit |
| Bundled Software | Norton Internet Security |
| Clear Cmos Jumper | Yes |
| Country Of Origin | China |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | ECC & Non-ECC |
| Headphone Outputs | 1 |
| Power Source Type | ATX |
| Batteries Included | Yes |
| Battery Technology | Lithium-Manganese Dioxide (LiMnO2) |
| Parallel Connector | Yes |
| Rgb Led Pin Header | Yes |
| Usb 2 0 Connectors | 2 |
| Usb Connector Type | USB Type-A |
| 12v Power Connector | Yes |
| Atx Power Connector | Yes |
| Eps Power Connector | Yes |
| Hdmi Ports Quantity | 1 |
| Power Fan Connector | Yes |
| Ps 2 Ports Quantity | 1 |
| Serial Port Headers | 1 |
| Spdif Out Connector | Yes |
| Display Port Version | 1.4 |
| Pc Health Monitoring | Fan, Temperature, Voltage, Water cooling |
| Pci Express X1 Slots | 1 |
| Pci Express X4 Slots | 1 |
| Audio Output Channels | 7.1 channels |
| Front Panel Connector | Yes |
| Number Of M 2 M Slots | 2 |
| Pci Express X16 Slots | 1 |
| Display Ports Quantity | 2 |
| Processor Manufacturer | Intel |
| Usb 2 0 Ports Quantity | 2 |
| Ethernet Interface Type | Gigabit Ethernet |
| Number Of Battery Cells | 1 |
| 4+1+1 Phases Digital Vrm | Yes |
| Ethernet Lan Rj 45 Ports | 1 |
| Usb 3 2 Gen 1 Connectors | 1 |
| Vga D Sub Ports Quantity | 1 |
| Digital Audio Optical Out | 3 |
| Lithium Weight Per Battery | 0.07 g |
| Motherboard Chipset Family | Intel |
| Compatible Processor Series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Front Panel Audio Connector | Yes |
| Pci Express X1 Gen 3 X Slots | 1 |
| Pci Express X16 Gen 3 X Slots | 1 |
| Pci Express X16 Gen 4 X Slots | 1 |
| Supported Memory Clock Speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Supported Storage Drive Types | HDD & SSD |
| Total Number Of Sata Connectors | 4 |
| Number Of Chassis Fan Connectors | 3 |
| Products Per Shipping Inner Case | 1 pc(s) |
| Number Of Parallel Ata Connectors | 1 |
| Supported Storage Drive Interfaces | M.2, SATA III |
| Usb 3 2 Gen 1 Type A Ports Quantity | 3 |
| Windows Operating Systems Supported | Windows 10, Windows 11 |
| System Management Bios Smbios Version | 2.7 |
| Desktop Management Interface Dmi Version | 2.7 |
