Gigabyte

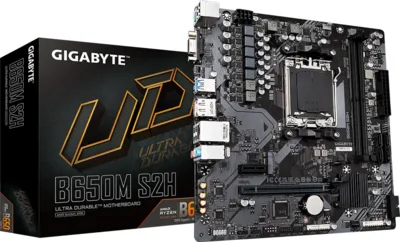

GIGABYTE B650M S2H
MPN: B650M S2H
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- mATX formátum
- AM5 kompatibilitás
Árak webshopokban
Legjobb ár
35 430 Ft
MegnézemÁrelőzmények
Specifikáció
| Foglalat | AM5 |
| Chipset | B650 |
| M2 csatlakozó | 1 |
| Memória típus | DDR5 |
| Memóriahelyek | 2 |
| Max RAM | 128 GB |
| SATA csatlakozó | 4 |
| Form | mATX |
| Max RAM frekv | 6400 MHz |
| PCIe | 4.0 |
További Specifikáció
| Hdcp | Yes |
| Depth | 225 mm |
| Width | 230 mm |
| Height | 35 mm |
| Line In | Yes |
| Bios Type | UEFI AMI |
| Audio Chip | Realtek ALC897 |
| Raid Levels | 0, 1, 10 |
| Acpi Version | 5.0 |
| Battery Type | CR2032 |
| Cooling Type | Passive |
| Ethernet Lan | Yes |
| Hdmi Version | 2.1 |
| Raid Support | Yes |
| Component For | PC |
| Microphone In | Yes |
| Package Depth | 265 mm |
| Package Width | 265 mm |
| Tpm Connector | Yes |
| Battery Weight | 3 g |
| Lan Controller | Realtek RTL8111H |
| Package Height | 54 mm |
| Package Weight | 917 g |
| Product Colour | Brown |
| Directx Version | 12.0 |
| Memory Channels | Dual-channel |
| Screws Included | Yes |
| Warranty Period | 3 year(s) |
| Bios Memory Size | 256 Mbit |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Clear Cmos Jumper | Yes |
| Country Of Origin | China |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | Non-ECC |
| Headphone Outputs | 1 |
| Power Source Type | ATX |
| Batteries Included | Yes |
| Battery Technology | Lithium-Manganese Dioxide (LiMnO2) |
| Ethernet Lan Ports | 1 |
| Maximum Resolution | 4096 x 2160 pixels |
| Rgb Led Pin Header | Yes |
| Usb 2 0 Connectors | 2 |
| 12v Power Connector | Yes |
| Atx Power Connector | Yes |
| Displayport Version | 1.4 |
| Eps Power Connector | Yes |
| Hdmi Ports Quantity | 1 |
| Ps 2 Ports Quantity | 1 |
| Pc Health Monitoring | Fan, Temperature, Voltage |
| Audio Output Channels | 7.1 channels |
| Displayports Quantity | 1 |
| Front Panel Connector | Yes |
| Number Of M 2 M Slots | 1 |
| Processor Manufacturer | AMD |
| Usb 2 0 Ports Quantity | 4 |
| Ethernet Interface Type | Gigabit Ethernet |
| Number Of Battery Cells | 1 |
| 1st M 2 Largest Key Size | 2580 |
| Usb 3 2 Gen 1 Connectors | 1 |
| Vga D Sub Ports Quantity | 1 |
| Discrete Graphics Support | Yes |
| Lithium Weight Per Battery | 0.07 g |
| Motherboard Chipset Family | AMD |
| Compatible Processor Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Front Panel Audio Connector | Yes |
| Number Of Cpu Fan Connectors | 1 |
| Pci Express X1 Gen 3 X Slots | 1 |
| Number Of Rgb Led Pin Headers | 2 |
| Number Of Sata Iii Connectors | 4 |
| Pci Express X16 Gen 4 X Slots | 1 |
| Supported Memory Clock Speeds | 4400,4800,5200,5600,6000,6200,6400 MHz |
| Supported Storage Drive Types | HDD & SSD |
| Number Of Eps Power Connectors | 1 |
| System Management Bios Version | 2.7 |
| Maximum Internal Memory Per Slot | 64 GB |
| Number Of Chassis Fan Connectors | 2 |
| Products Per Shipping Inner Case | 1 pc(s) |
| Number Of Storage Drives Supported | 5 |
| Supported Storage Drive Interfaces | M.2, SATA III |
| Usb 3 2 Gen 1 Type A Ports Quantity | 2 |
| Windows Operating Systems Supported | Windows 10 x64, Windows 11 x64 |
| Desktop Management Interface Version | 2.7 |
| 1st M 2 Highest Pci Express Generation | 4.0 |
