Gigabyte

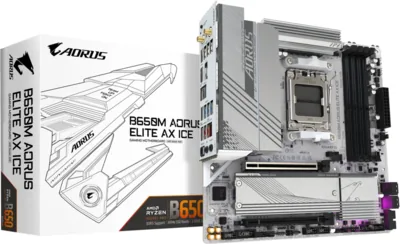

GIGABYTE B650M AORUS ELITE AX ICE
MPN: B650M AORUS ELITE AX ICE
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- mATX formátum
- AM5 kompatibilitás
Árelőzmények
Specifikáció
| Wifi | Wi-Fi 6E |
| Foglalat | AM5 |
| Chipset | B650 |
| M2 csatlakozó | 2 |
| Memória típus | DDR5 |
| Memóriahelyek | 4 |
| Max RAM | 256 GB |
| SATA csatlakozó | 4 |
| Form | mATX |
| Max RAM frekv | 8000 MHz |
| PCIe | 5.0 |
További Specifikáció
| Hdcp | Yes |
| Depth | 244 mm |
| Width | 244 mm |
| Height | 35 mm |
| Line In | Yes |
| Bios Type | UEFI AMI |
| Bluetooth | Yes |
| Audio Chip | Realtek ALC897 |
| Raid Levels | 0, 1, 10 |
| Acpi Version | 5.0 |
| Battery Type | CR2032 |
| Ethernet Lan | Yes |
| Hdmi Version | 2.1 |
| Raid Support | Yes |
| Component For | PC |
| Package Depth | 268 mm |
| Package Width | 270 mm |
| Tpm Connector | Yes |
| Battery Weight | 3 g |
| Lan Controller | Realtek RTL8125 |
| Max Resolution | 4096 x 2304 pixels |
| Package Height | 68 mm |
| Package Weight | 1.89 kg |
| Product Colour | White |
| Spdif Out Port | Yes |
| Wifi Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Directx Version | 12.0 |
| Memory Channels | Dual-channel |
| Screws Included | Yes |
| Warranty Period | 3 year(s) |
| Antenna Included | Yes |
| Bios Memory Size | 256 Mbit |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| 12 2 2 Phases Vrm | Yes |
| Bluetooth Version | 5.3 |
| Clear Cmos Jumper | Yes |
| Country Of Origin | China |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | Non-ECC |
| Headphone Outputs | 1 |
| Power Source Type | ATX |
| Batteries Included | Yes |
| Battery Technology | Lithium-Manganese Dioxide (LiMnO2) |
| Rgb Led Pin Header | Yes |
| Usb 2 0 Connectors | 2 |
| 12v Power Connector | Yes |
| Atx Power Connector | Yes |
| Displayport Version | 1.4 |
| Hdmi Ports Quantity | 1 |
| Serial Port Headers | 1 |
| Pc Health Monitoring | Fan, Temperature, Voltage, Water cooling |
| Wifi Ap Antenna Jack | 2 |
| Audio Output Channels | 7.1 channels |
| Displayports Quantity | 1 |
| Front Panel Connector | Yes |
| Wlan Controller Model | Realtek RTL8852CE |
| Processor Manufacturer | AMD |
| Usb 2 0 Ports Quantity | 4 |
| 1st M2 Largest Key Size | 25110 |
| 2nd M2 Largest Key Size | 25110 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Number Of Battery Cells | 1 |
| Ethernet Lan Rj 45 Ports | 1 |
| Usb 3 2 Gen 1 Connectors | 1 |
| Digital Audio Optical Out | 1 |
| Discrete Graphics Support | Yes |
| Lithium Weight Per Battery | 0.07 g |
| Motherboard Chipset Family | AMD |
| Usb 3 2 Gen 2x2 Connectors | 1 |
| Compatible Processor Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Front Panel Audio Connector | Yes |
| Number Of Cpu Fan Connectors | 2 |
| Number Of Rgb Led Pin Headers | 5 |
| Pci Express X16 Gen 4 X Slots | 2 |
| Supported Storage Drive Types | HDD & SSD |
| System Management Bios Version | 2.7 |
| Number Of Water Pump Connectors | 2 |
| Number Of Chassis Fan Connectors | 4 |
| Products Per Shipping Inner Case | 1 pc(s) |
| Usb 3 2 Gen 1 Type A Ports Quantity | 5 |
| Usb 3 2 Gen 2 Type A Ports Quantity | 2 |
| Usb 3 2 Gen 2 Type C Ports Quantity | 1 |
| Windows Operating Systems Supported | Windows 10 x64, Windows 11 x64 |
| Desktop Management Interface Version | 2.7 |
| 1st M2 Highest Pci Express Generation | 5.0 |
| 2nd M2 Highest Pci Express Generation | 4.0 |
