Gigabyte

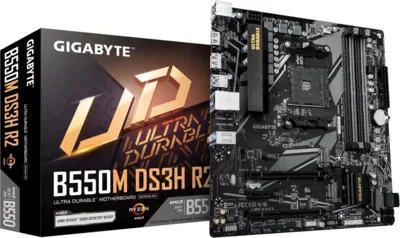

GIGABYTE B550M DS3H R2
MPN: B550M DS3H R2
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- mATX formátum
- AM4 kompatibilitás
Árelőzmények
Specifikáció
| Foglalat | AM4 |
| Chipset | B550 |
| M2 csatlakozó | 2 |
| Memória típus | DDR4 |
| Memóriahelyek | 4 |
| Max RAM | 128 GB |
| SATA csatlakozó | 4 |
| Form | mATX |
| Max RAM frekv | 4733 MHz |
| PCIe | 4.0 |
További Specifikáció
| Hdcp | Yes |
| Depth | 244 mm |
| Width | 244 mm |
| Height | 35 mm |
| Weight | 870 g |
| Line In | Yes |
| Bios Type | UEFI AMI |
| Audio Chip | Realtek ALC1220-VB |
| Raid Levels | 0, 1, 10 |
| Acpi Version | 5.0 |
| Battery Type | CR2032 |
| Cooling Type | Passive |
| Ethernet Lan | Yes |
| Hdmi Version | 2.1 |
| Raid Support | Yes |
| Component For | PC |
| Microphone In | Yes |
| Package Depth | 265 mm |
| Package Width | 265 mm |
| Tpm Connector | Yes |
| Battery Weight | 3 g |
| Lan Controller | Realtek RTL8111H |
| Package Height | 54 mm |
| Package Weight | 947 g |
| Product Colour | Dark brown |
| Directx Version | 12.0 |
| Memory Channels | Dual-channel |
| Screws Included | Yes |
| Bios Memory Size | 128 Mbit |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Clear Cmos Jumper | Yes |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | ECC & Non-ECC |
| Headphone Outputs | 1 |
| Power Source Type | ATX |
| Batteries Included | Yes |
| Battery Technology | Lithium-Manganese Dioxide (LiMnO2) |
| Maximum Resolution | 5120 x 2880 pixels |
| Rgb Led Pin Header | Yes |
| Usb 2 0 Connectors | 1 |
| Hdmi Ports Quantity | 1 |
| Ps 2 Ports Quantity | 1 |
| Serial Port Headers | 1 |
| Display Port Version | 1.4 |
| Pc Health Monitoring | Fan, Temperature, Voltage |
| Audio Output Channels | 7.1 channels |
| Front Panel Connector | Yes |
| Display Ports Quantity | 1 |
| Processor Manufacturer | AMD |
| Usb 2 0 Ports Quantity | 2 |
| Ethernet Interface Type | Gigabit Ethernet |
| Number Of Battery Cells | 1 |
| 1st M 2 Largest Key Size | 2280 |
| 2nd M 2 Largest Key Size | 2280 |
| Ethernet Lan Rj 45 Ports | 1 |
| Eps Power Connector 8 Pin | Yes |
| Number Of Hd Ds Supported | 4 |
| Atx Power Connector 24 Pin | Yes |
| Lithium Weight Per Battery | 0.07 g |
| Motherboard Chipset Family | AMD |
| Compatible Processor Series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Front Panel Audio Connector | Yes |
| Max Internal Memory Per Slot | 32 GB |
| Number Of Cpu Fan Connectors | 1 |
| Pci Express X1 Gen 3 X Slots | 1 |
| Number Of Rgb Led Pin Headers | 5 |
| Pci Express X16 Gen 3 X Slots | 1 |
| Pci Express X16 Gen 4 X Slots | 1 |
| Supported Memory Clock Speeds | 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz |
| Supported Storage Drive Types | HDD & SSD |
| Number Of Chassis Fan Connectors | 2 |
| Products Per Shipping Inner Case | 1 pc(s) |
| Number Of Storage Drives Supported | 6 |
| Supported Storage Drive Interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| Usb 3 2 Gen 1 3 1 Gen 1 Connectors | 2 |
| Windows Operating Systems Supported | Windows 10 x64, Windows 11 x64 |
| Number Of Eps Power Connectors 8 Pin | 1 |
| System Management Bios Smbios Version | 2.7 |
| 1st M 2 Highest Pci Express Generation | 4.0 |
| 2nd M 2 Highest Pci Express Generation | 3.0 |
| Desktop Management Interface Dmi Version | 2.7 |
| Usb 3 2 Gen 1 3 1 Gen 1 Type A Ports Quantity | 4 |
