Asus

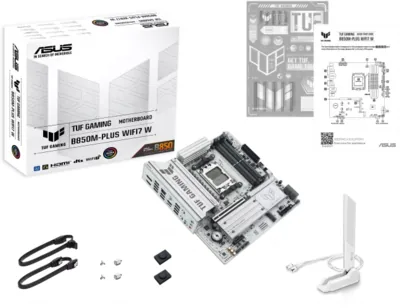

ASUS TUF GAMING B850M-PLUS WIFI7 W
MPN: TUF GAMING B850M-PLUS WIFI7 W
Egyéb MPN: 90MB1MD0-M0EAY0
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- mATX formátum
- AM5 kompatibilitás
Árelőzmények
Specifikáció
| Wifi | Wi-Fi 7 (802.11be) |
| Foglalat | AM5 |
| Chipset | B850 |
| M2 csatlakozó | 3 |
| Memória típus | DDR5 |
| Memóriahelyek | 4 |
| Max RAM | 256 GB |
| SATA csatlakozó | 4 |
| Form | mATX |
| PCIe | 5.0 |
További Specifikáció
| Depth | 244 mm |
| Width | 244 mm |
| Bios Type | UEFI AMI |
| Bluetooth | Yes |
| Audio Chip | Realtek ALC1220P |
| Raid Levels | 0, 1, 5, 10 |
| Ethernet Lan | Yes |
| Raid Support | Yes |
| Component For | PC |
| Package Depth | 275 mm |
| Package Width | 275 mm |
| Package Height | 67.5 mm |
| Package Weight | 1.65 kg |
| Product Colour | White |
| Cables Included | SATA |
| Memory Channels | Dual-channel |
| Screws Included | Yes |
| Antenna Included | Yes |
| Bios Memory Size | 256 Mbit |
| Bluetooth Version | 5.4 |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | ECC & Non-ECC |
| Unbuffered Memory | Yes |
| Rgb Led Pin Header | Yes |
| Usb 2.0 Connectors | 2 |
| 12v Power Connector | Yes |
| Hdmi Ports Quantity | 1 |
| Wifi-ap Antenna Jack | 1 |
| Audio Output Channels | 7.1 channels |
| Displayports Quantity | 1 |
| Front Panel Connector | Yes |
| Wlan Controller Model | MediaTek MT7925 |
| Usb 2.0 Ports Quantity | 4 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| 1st M.2 Largest Key Size | 2280 |
| 2nd M.2 Largest Key Size | 2280 |
| 3rd M.2 Largest Key Size | 2280 |
| Number Of Com Connectors | 1 |
| Ethernet Lan (rj-45) Ports | 1 |
| Motherboard Chipset Family | AMD |
| Chassis Intrusion Connector | Yes |
| Compatible Processor Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Eps Power Connector (8-pin) | Yes |
| Front Panel Audio Connector | Yes |
| Atx Power Connector (24-pin) | Yes |
| Number Of Rgb Led Pin Headers | 3 |
| Supported Storage Drive Types | HDD & SSD |
| Pci Express X1 (gen 4.x) Slots | 1 |
| Pci Express X16 (gen 4.x) Slots | 1 |
| Pci Express X16 (gen 5.x) Slots | 1 |
| Number Of Chassis Fan Connectors | 3 |
| Windows Operating Systems Supported | Windows 11 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Connectors | 1 |
| Usb 3.2 Gen 2x2 Type-c Ports Quantity | 1 |
| 1st M.2 Highest Pci Express Generation | 5.0 |
| 2nd M.2 Highest Pci Express Generation | 4.0 |
| 3rd M.2 Highest Pci Express Generation | 4.0 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity | 4 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity | 3 |
