Asus

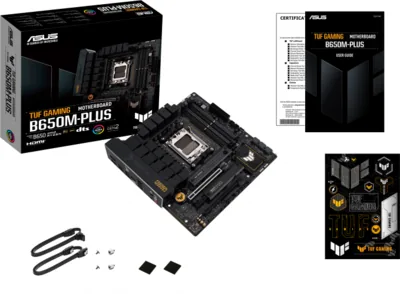

ASUS TUF GAMING B650M-PLUS
MPN: TUF GAMING B650M-PLUS
Egyéb MPN: 90MB1BG0-M0EAY0
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- mATX formátum
- AM5 kompatibilitás
Árelőzmények
Specifikáció
| Foglalat | AM5 |
| Chipset | B650 |
| M2 csatlakozó | 2 |
| Memória típus | DDR5 |
| Memóriahelyek | 4 |
| Max RAM | 128 GB |
| SATA csatlakozó | 4 |
| Form | mATX |
| Max RAM frekv | 6400 MHz |
| PCIe | 4.0 |
További Specifikáció
| Depth | 244 mm |
| Width | 244 mm |
| Line-in | Yes |
| Bios Type | UEFI AMI |
| Raid Levels | 0, 1, 10 |
| Hdmi Version | 2.1 |
| Raid Support | Yes |
| Component For | PC |
| Microphone In | Yes |
| Memory Channels | Dual-channel |
| Bios Memory Size | 256 Mbit |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | ECC & Non-ECC |
| Headphone Outputs | 1 |
| Power Source Type | ATX |
| Unbuffered Memory | Yes |
| Rgb Led Pin Header | Yes |
| Usb 2.0 Connectors | 2 |
| 12v Power Connector | Yes |
| Back-to-bios Button | Yes |
| Displayport Version | 1.4 |
| Hdmi Ports Quantity | 1 |
| Thunderbolt Headers | 1 |
| Audio Output Channels | 7.1 channels |
| Displayports Quantity | 1 |
| Usb 2.0 Ports Quantity | 4 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Number Of Com Connectors | 1 |
| Ethernet Lan (rj-45) Ports | 1 |
| Motherboard Chipset Family | AMD |
| Compatible Processor Series | AMD Ryzen 7000 Series |
| Eps Power Connector (8-pin) | Yes |
| Front Panel Audio Connector | Yes |
| Atx Power Connector (24-pin) | Yes |
| Supported Storage Drive Types | HDD & SSD |
| Pci Express X4 (gen 1.x) Slots | 1 |
| Pci Express X16 (gen 4.x) Slots | 2 |
| Number Of Chassis Fan Connectors | 3 |
| Windows Operating Systems Supported | Windows 10, Windows 11 x64 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 2 |
| Usb 3.2 Gen 2x2 Type-c Ports Quantity | 1 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity | 1 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity | 2 |
