Asus

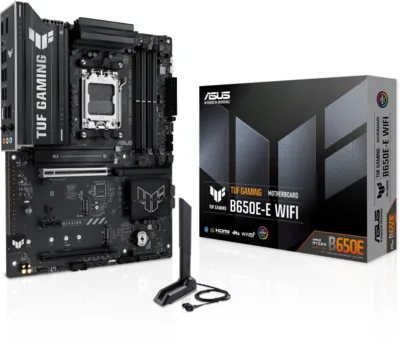

ASUS TUF GAMING B650E-E WIFI
MPN: TUF GAMING B650E-E WIFI
Egyéb MPN: 90MB1LT0-M0EAY0
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- ATX formátum
- AM5 kompatibilitás
Árelőzmények
Specifikáció
| Wifi | Wi-Fi 6E (802.11ax) |
| Foglalat | AM5 |
| Chipset | B650 |
| M2 csatlakozó | 3 |
| Memória típus | DDR5 |
| Memóriahelyek | 4 |
| Max RAM | 256 GB |
| SATA csatlakozó | 4 |
| Form | ATX |
| PCIe | 5.0 |
További Specifikáció
| Depth | 244 mm |
| Wi Fi | Yes |
| Width | 305 mm |
| Line In | Yes |
| Bios Type | UEFI AMI |
| Bluetooth | Yes |
| Raid Levels | 0, 1, 5, 10 |
| Cooling Type | Passive |
| Ethernet Lan | Yes |
| Raid Support | Yes |
| Component For | PC |
| Microphone In | Yes |
| Package Depth | 273 mm |
| Package Width | 353 mm |
| Package Height | 68 mm |
| Package Weight | 1.78 kg |
| Product Colour | Black |
| Cables Included | SATA |
| Memory Channels | Dual-channel |
| Screws Included | Yes |
| Wi Fi Standards | Wi-Fi 6E (802.11ax) |
| Antenna Included | Yes |
| Bios Memory Size | 256 Mbit |
| Bluetooth Version | 5.3 |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | ECC & Non-ECC |
| Unbuffered Memory | Yes |
| Ethernet Lan Ports | 1 |
| Rgb Led Pin Header | Yes |
| Usb 2 0 Connectors | 2 |
| 12v Power Connector | Yes |
| Atx Power Connector | Yes |
| Eps Power Connector | Yes |
| Hdmi Ports Quantity | 1 |
| S Pdif Out Connector | Yes |
| Wifi Ap Antenna Jack | 1 |
| Audio Output Channels | 7.1 channels |
| Front Panel Connector | Yes |
| Display Ports Quantity | 1 |
| On Board Graphics Card | No |
| Usb 2 0 Ports Quantity | 3 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| 1st M 2 Largest Key Size | 2280 |
| 2nd M 2 Largest Key Size | 2280 |
| 3rd M 2 Largest Key Size | 22110 |
| Number Of Com Connectors | 1 |
| Number Of Hdds Supported | 4 |
| Usb 3 2 Gen 1 Connectors | 1 |
| Usb 3 2 Gen 2 Connectors | 1 |
| Motherboard Chipset Family | AMD |
| Chassis Intrusion Connector | Yes |
| Compatible Processor Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Front Panel Audio Connector | Yes |
| Pci Express X1 Gen 4 X Slots | 1 |
| Number Of Rgb Led Pin Headers | 3 |
| Pci Express X16 Gen 4 X Slots | 1 |
| Pci Express X16 Gen 5 X Slots | 1 |
| Supported Storage Drive Types | HDD & SSD |
| Number Of Chassis Fan Connectors | 4 |
| Peripheral Molex Power Connectors | 1 |
| Number Of Storage Drives Supported | 7 |
| Supported Storage Drive Interfaces | M.2, SATA III |
| Usb 3 2 Gen 1 Type A Ports Quantity | 3 |
| Usb 3 2 Gen 2 Type A Ports Quantity | 1 |
| Usb 3 2 Gen 2 Type C Ports Quantity | 1 |
| Windows Operating Systems Supported | Windows 10 x64, Windows 11 |
| 1st M 2 Highest Pci Express Generation | 5.0 |
| 2nd M 2 Highest Pci Express Generation | 4.0 |
| 3rd M 2 Highest Pci Express Generation | 4.0 |
| Parallel Processing Technology Support | Not supported |
