Asus

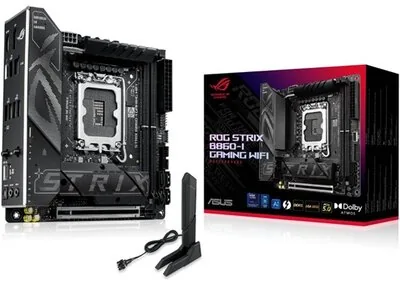

ASUS ROG STRIX B860-I GAMING WIFI
MPN: ROG STRIX B860-I GAMING WIFI
Egyéb MPN: 90MB1JB0-M0EAY0
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- ITX formátum
- LGA1851 kompatibilitás
Árelőzmények
Specifikáció
| Wifi | Wi-Fi 7 |
| Foglalat | LGA1851 |
| Chipset | B860 |
| M2 csatlakozó | 2 |
| Memória típus | DDR5 |
| Memóriahelyek | 2 |
| Max RAM | 128 GB |
| SATA csatlakozó | 4 |
| Form | ITX |
| Max RAM frekv | 9066 MHz |
| PCIe | 5.0 |
További Specifikáció
| Depth | 170 mm |
| Width | 170 mm |
| Weight | 812.6 g |
| Bios Type | UEFI AMI |
| Bluetooth | Yes |
| Audio Chip | Realtek ALC1220P |
| Raid Levels | 0, 1, 5, 10 |
| Ethernet Lan | Yes |
| Raid Support | Yes |
| Component For | PC |
| Microphone In | Yes |
| Package Depth | 187 mm |
| Package Width | 228 mm |
| Package Height | 96 mm |
| Package Weight | 1.47 kg |
| Product Colour | Multicolour |
| Memory Channels | Dual-channel |
| S/pdif Out Port | Yes |
| Bios Memory Size | 256 Mbit |
| Bluetooth Version | 5.4 |
| Clear Cmos Button | Yes |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | Non-ECC |
| On Board Graphics | No |
| Unbuffered Memory | Yes |
| Usb 2.0 Connectors | 1 |
| 12v Power Connector | Yes |
| Hdmi Ports Quantity | 1 |
| Audio Output Channels | 7.1 channels |
| Displayports Quantity | 1 |
| Usb 2.0 Ports Quantity | 2 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Number Of M.2 (m) Slots | 2 |
| Number Of Hdds Supported | 4 |
| Ethernet Lan (rj-45) Ports | 1 |
| Motherboard Chipset Family | Intel |
| Thunderbolt Ports Quantity | 1 |
| Compatible Processor Series | Intel Core Ultra (Series 2) |
| Eps Power Connector (8-pin) | Yes |
| Front Panel Audio Connector | Yes |
| Atx Power Connector (24-pin) | Yes |
| Number Of Cpu Fan Connectors | 1 |
| Supported Storage Drive Types | HDD & SSD |
| Pci Express X16 (gen 5.x) Slots | 1 |
| Number Of Chassis Fan Connectors | 1 |
| Number Of Storage Drives Supported | 6 |
| Windows Operating Systems Supported | Windows 11 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Connectors | 1 |
| Usb 3.2 Gen 2x2 Type-c Ports Quantity | 1 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity | 3 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity | 1 |
