Asus

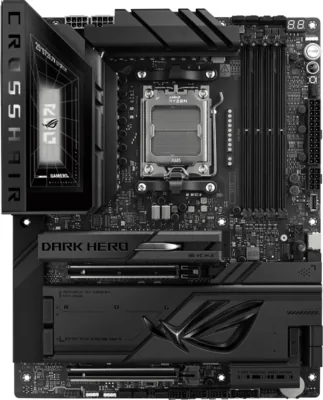

ASUS ROG CROSSHAIR X870E DARK HERO
MPN: 90MB1NT0-M0EAY0
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- ATX formátum
- AM5 kompatibilitás
Árelőzmények
Specifikáció
| Wifi | Wi-Fi 7 (802.11be) |
| Foglalat | AM5 |
| Chipset | X870E |
| M2 csatlakozó | 5 |
| Memória típus | DDR5 |
| Memóriahelyek | 4 |
| Max RAM | 256 GB |
| SATA csatlakozó | 4 |
| Form | ATX |
| PCIe | 5.0 |
További Specifikáció
| Depth | 244 mm |
| Width | 305 mm |
| Bios Type | UEFI AMI |
| Bluetooth | Yes |
| Audio Chip | Realtek ALC4082 |
| Raid Levels | 0, 1, 5, 10 |
| Ethernet Lan | Yes |
| Raid Support | Yes |
| Component For | PC |
| Microphone In | Yes |
| Package Depth | 367 mm |
| Package Width | 308 mm |
| Package Height | 110 mm |
| Package Weight | 4.43 kg |
| Product Colour | Black |
| Spdif Out Port | Yes |
| Cables Included | SATA |
| Memory Channels | Dual-channel |
| Screws Included | Yes |
| Antenna Included | Yes |
| Bios Memory Size | 512 Mbit |
| Bluetooth Version | 5.4 |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | ECC & Non-ECC |
| Memory Slots Type | DIMM |
| Unbuffered Memory | Yes |
| Usb 2 0 Connectors | 3 |
| 12v Power Connector | Yes |
| Hdmi Ports Quantity | 1 |
| Wifi Ap Antenna Jack | 1 |
| Audio Output Channels | 7.1 channels |
| Front Panel Connector | Yes |
| Wlan Controller Model | MediaTek MT7927 |
| On Board Graphics Card | No |
| 1st M2 Largest Key Size | 22110 |
| 2nd M2 Largest Key Size | 2280 |
| 3rd M2 Largest Key Size | 2280 |
| 4th M2 Largest Key Size | 2280 |
| Ethernet Interface Type | 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet Lan Rj 45 Ports | 2 |
| Number Of Hdds Supported | 4 |
| Eps Power Connector 8 Pin | Yes |
| Atx Power Connector 24 Pin | Yes |
| Motherboard Chipset Family | AMD |
| Usb 3 2 Gen 2x2 Connectors | 2 |
| Compatible Processor Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Front Panel Audio Connector | Yes |
| Usb4 Gen 3x2 Ports Quantity | 2 |
| Pci Express X16 Gen 4 X Slots | 2 |
| Pci Express X16 Gen 5 X Slots | 2 |
| Supported Storage Drive Types | HDD & SSD |
| Number Of Chassis Fan Connectors | 4 |
| Number Of Storage Drives Supported | 9 |
| Supported Storage Drive Interfaces | M.2, SATA III |
| Usb 3 2 Gen 1 3 1 Gen 1 Connectors | 2 |
| Windows Operating Systems Supported | Windows 11 |
| Number Of Temperature Sensor Headers | 1 |
| 1st M2 Highest Pci Express Generation | 5.0 |
| 2nd M2 Highest Pci Express Generation | 5.0 |
| 3rd M2 Highest Pci Express Generation | 4.0 |
| 4th M2 Highest Pci Express Generation | 4.0 |
| 5th M2 Highest Pci Express Generation | 4.0 |
| Parallel Processing Technology Support | Not supported |
| Usb 3 2 Gen 2 3 1 Gen 2 Type A Ports Quantity | 6 |
| Usb 3 2 Gen 2 3 1 Gen 2 Type C Ports Quantity | 3 |
