Asus

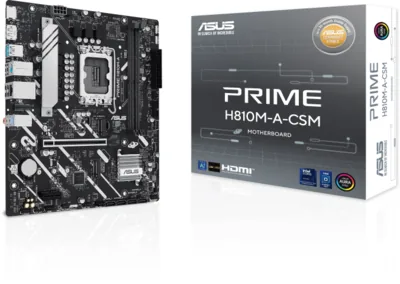

ASUS PRIME H810M-A-CSM
MPN: PRIME H810M-A-CSM
Egyéb MPN: 90MB1KK0-M0EAYC
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- mATX formátum
- LGA1851 kompatibilitás
Árak webshopokban
Legjobb ár
50 900 Ft
MegnézemÁrelőzmények
Specifikáció
| Foglalat | LGA1851 |
| Chipset | H810 |
| M2 csatlakozó | 2 |
| Memória típus | DDR5 |
| Memóriahelyek | 2 |
| Max RAM | 128 GB |
| SATA csatlakozó | 4 |
| Form | mATX |
| Max RAM frekv | 6400 MHz |
| PCIe | 4.0 |
További Specifikáció
| Depth | 222 mm |
| Width | 244 mm |
| Height | 37 mm |
| Weight | 534 g |
| Line In | Yes |
| Bios Type | UEFI AMI |
| Ethernet Lan | Yes |
| Hdmi Version | 2.1 |
| Component For | PC |
| Microphone In | Yes |
| Package Depth | 263 mm |
| Package Width | 270 mm |
| Tpm Connector | Yes |
| Lan Controller | Intel I219V |
| Package Height | 51.5 mm |
| Package Weight | 782 g |
| Product Colour | Black |
| Memory Channels | Dual-channel |
| Bios Memory Size | 256 Mbit |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | Non-ECC |
| Power Source Type | ATX |
| Unbuffered Memory | Yes |
| Wake On Lan Ready | Yes |
| Rgb Led Pin Header | Yes |
| Usb 2 0 Connectors | 1 |
| Hdmi Ports Quantity | 1 |
| Ps 2 Ports Quantity | 1 |
| Spdif Out Connector | Yes |
| Display Port Version | 1.4 |
| Audio Output Channels | 7.1 channels |
| Front Panel Connector | Yes |
| Number Of M 2 E Slots | 1 |
| Display Ports Quantity | 1 |
| On Board Graphics Card | No |
| Usb 2 0 Ports Quantity | 4 |
| Ethernet Interface Type | Gigabit Ethernet |
| 1st M 2 Largest Key Size | 2280 |
| 2nd M 2 Largest Key Size | 2280 |
| Ethernet Lan Rj 45 Ports | 1 |
| Number Of Com Connectors | 1 |
| Number Of Hdds Supported | 4 |
| Eps Power Connector 8 Pin | Yes |
| Atx Power Connector 24 Pin | Yes |
| Motherboard Chipset Family | Intel |
| Compatible Processor Series | Intel Core Ultra (Series 2) |
| Front Panel Audio Connector | Yes |
| Number Of Cpu Fan Connectors | 1 |
| Pci Express X1 Gen 4 X Slots | 1 |
| Number Of Rgb Led Pin Headers | 3 |
| Pci Express X16 Gen 4 X Slots | 1 |
| Supported Storage Drive Types | HDD & SSD |
| Number Of Chassis Fan Connectors | 2 |
| Number Of Storage Drives Supported | 6 |
| Supported Storage Drive Interfaces | M.2, PCI Express 4.0, SATA III |
| Usb 3 2 Gen 1 3 1 Gen 1 Connectors | 2 |
| Windows Operating Systems Supported | Windows 10 x64, Windows 11 |
| Number Of Eps Power Connectors 8 Pin | 1 |
| 1st M 2 Highest Pci Express Generation | 4.0 |
| 2nd M 2 Highest Pci Express Generation | 4.0 |
| Parallel Processing Technology Support | Not supported |
| Usb 3 2 Gen 2 3 1 Gen 2 Type A Ports Quantity | 2 |
Legjobb ár
50 900 Ft
FirstShop
Ugrás a webshophozHozzáadás a konfigurációhozValaha legalacsonyabb: 36 490 Ft
