Asus

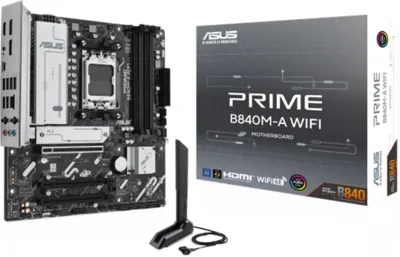

ASUS PRIME B840M-A WIFI
MPN: PRIME B840M-A WIFI
Egyéb MPN: 90MB1J20-M0EAY0
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- mATX formátum
- AM5 kompatibilitás
Árelőzmények
Specifikáció
| Wifi | Wi-Fi 6E |
| Foglalat | AM5 |
| Chipset | B840 |
| M2 csatlakozó | 3 |
| Memória típus | DDR5 |
| Memóriahelyek | 4 |
| Max RAM | 192 GB |
| SATA csatlakozó | 4 |
| Form | mATX |
| PCIe | 4.0 |
További Specifikáció
| Wifi | Yes |
| Depth | 244 mm |
| Width | 244 mm |
| Bios Type | UEFI AMI |
| Bluetooth | Yes |
| Raid Levels | 0, 1, 5, 10 |
| Ethernet Lan | Yes |
| Raid Support | Yes |
| Component For | PC |
| Package Depth | 275 mm |
| Package Width | 275 mm |
| Tpm Connector | Yes |
| Com Connectors | 1 |
| Package Height | 67.5 mm |
| Package Weight | 1.52 kg |
| Wifi Standards | Wi-Fi 6E (802.11ax) |
| Cables Included | SATA |
| Memory Channels | Dual-channel |
| Screws Included | Yes |
| Antenna Included | Yes |
| Bios Memory Size | 256 Mbit |
| Bluetooth Version | 5.3 |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | ECC & Non-ECC |
| Unbuffered Memory | Yes |
| Ethernet Lan Ports | 1 |
| Usb 2 0 Connectors | 2 |
| 12v Power Connector | Yes |
| Atx Power Connector | Yes |
| Hdmi Ports Quantity | 1 |
| Spd If Out Connector | Yes |
| Wifi Ap Antenna Jack | 1 |
| Audio Output Channels | 7.1 channels |
| Front Panel Connector | Yes |
| Chassis Fan Connectors | 3 |
| Display Ports Quantity | 2 |
| Pcie X16 Gen 3 X Slots | 2 |
| Pcie X16 Gen 4 X Slots | 1 |
| Usb 2 0 Ports Quantity | 4 |
| 1st M2 Largest Key Size | 2280 |
| 2nd M2 Largest Key Size | 2280 |
| 3rd M2 Largest Key Size | 2280 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Usb 3 2 Gen 1 Connectors | 2 |
| Motherboard Chipset Family | AMD |
| Compatible Processor Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Front Panel Audio Connector | Yes |
| Supported Storage Drive Types | HDD & SSD |
| 1st M2 Highest Pcie Generation | 4.0 |
| 2nd M2 Highest Pcie Generation | 4.0 |
| 3rd M2 Highest Pcie Generation | 3.0 |
| Usb 3 2 Gen 1 Type C Ports Quantity | 1 |
| Usb 3 2 Gen 2 Type A Ports Quantity | 2 |
| Windows Operating Systems Supported | Windows 10 x64, Windows 11 |
