Asus

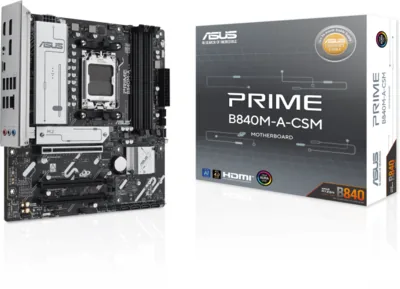

ASUS PRIME B840M-A-CSM
MPN: PRIME B840M-A-CSM
Egyéb MPN: 90MB1J10-M0EAYC
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- mATX formátum
- AM5 kompatibilitás
Árak webshopokban
Legjobb ár
46 900 Ft
MegnézemÁrelőzmények
Specifikáció
| Foglalat | AM5 |
| Chipset | B840 |
| M2 csatlakozó | 3 |
| Memória típus | DDR5 |
| Memóriahelyek | 4 |
| Max RAM | 192 GB |
| SATA csatlakozó | 4 |
| Form | mATX |
| Max RAM frekv | 7600 MHz |
| PCIe | 4.0 |
További Specifikáció
| Depth | 244 mm |
| Width | 244 mm |
| Weight | 910 g |
| Line In | Yes |
| Bios Type | UEFI AMI |
| Raid Levels | 0, 1, 5, 10 |
| Ethernet Lan | Yes |
| Hdmi Version | 2.1 |
| Raid Support | Yes |
| Component For | PC |
| Package Depth | 275 mm |
| Package Width | 275 mm |
| Tpm Connector | Yes |
| Package Height | 67.5 mm |
| Package Weight | 1.45 kg |
| Product Colour | Grey |
| Cables Included | SATA |
| Memory Channels | Dual-channel |
| Screws Included | Yes |
| Bios Memory Size | 256 Mbit |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | ECC & Non-ECC |
| Headphone Outputs | 1 |
| Power Source Type | ATX |
| Unbuffered Memory | Yes |
| Maximum Resolution | 7680 x 4320 pixels |
| Rgb Led Pin Header | Yes |
| Usb 2 0 Connectors | 2 |
| Displayport Version | 1.4 |
| Hdmi Ports Quantity | 1 |
| Spdif Out Connector | Yes |
| Audio Output Channels | 7.1 channels |
| Displayports Quantity | 1 |
| Front Panel Connector | Yes |
| Usb 2 0 Ports Quantity | 4 |
| 1st M2 Largest Key Size | 2280 |
| 2nd M2 Largest Key Size | 2280 |
| 3rd M2 Largest Key Size | 2280 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Ethernet Lan Rj 45 Ports | 1 |
| Number Of Com Connectors | 1 |
| Quick Installation Guide | Yes |
| Eps Power Connector 8 Pin | Yes |
| Atx Power Connector 24 Pin | Yes |
| Motherboard Chipset Family | AMD |
| Compatible Processor Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Front Panel Audio Connector | Yes |
| Number Of Cpu Fan Connectors | 2 |
| Number Of Rgb Led Pin Headers | 3 |
| Pci Express X16 Gen 3 X Slots | 2 |
| Pci Express X16 Gen 4 X Slots | 1 |
| Supported Storage Drive Types | HDD & SSD |
| Number Of Chassis Fan Connectors | 2 |
| Usb 3 2 Gen 1 3 1 Gen 1 Connectors | 2 |
| Windows Operating Systems Supported | Windows 10 x64, Windows 11 |
| Number Of Eps Power Connectors 8 Pin | 1 |
| 1st M2 Highest Pci Express Generation | 4.0 |
| 2nd M2 Highest Pci Express Generation | 4.0 |
| 3rd M2 Highest Pci Express Generation | 3.0 |
| Parallel Processing Technology Support | Not supported |
| Usb 3 2 Gen 1 3 1 Gen 1 Type C Ports Quantity | 1 |
| Usb 3 2 Gen 2 3 1 Gen 2 Type A Ports Quantity | 2 |
