Asus

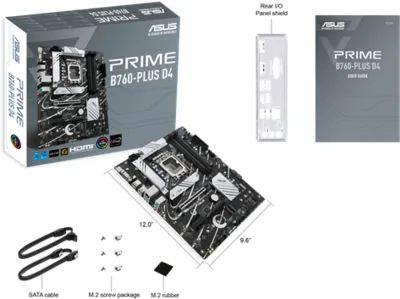

ASUS PRIME B760-PLUS D4
MPN: PRIME B760-PLUS D4
Egyéb MPN: 90MB1CW0-M0EAY0
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- ATX formátum
- LGA1700 kompatibilitás
Árak webshopokban
Legjobb ár
40 330 Ft
MegnézemÁrelőzmények
Specifikáció
| Foglalat | LGA1700 |
| Chipset | B760 |
| M2 csatlakozó | 3 |
| Memória típus | DDR4 |
| Memóriahelyek | 4 |
| Max RAM | 128 GB |
| SATA csatlakozó | 4 |
| Form | ATX |
| Max RAM frekv | 5066 MHz |
| PCIe | 5.0 |
További Specifikáció
| Line In | Yes |
| Bios Type | UEFI AMI |
| Raid Levels | 0, 1, 5, 10 |
| Cooling Type | Passive |
| Hdmi Version | 2.1 |
| Raid Support | Yes |
| Component For | PC |
| Tpm Connector | Yes |
| Memory Channels | Dual-channel |
| Bios Memory Size | 128 Mbit |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | Non-ECC |
| Headphone Outputs | 1 |
| Power Source Type | ATX |
| Ethernet Lan Ports | 1 |
| Rgb Led Pin Header | Yes |
| Usb 2 0 Connectors | 2 |
| Vga Ports Quantity | 1 |
| 12v Power Connector | Yes |
| Atx Power Connector | Yes |
| Displayport Version | 1.4 |
| Eps Power Connector | Yes |
| Hdmi Ports Quantity | 1 |
| Spdif Out Connector | Yes |
| Thunderbolt Headers | 1 |
| Audio Output Channels | 7.1 channels |
| Displayports Quantity | 1 |
| Front Panel Connector | Yes |
| Number Of M 2 E Slots | 1 |
| Usb 2 0 Ports Quantity | 2 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Number Of Com Connectors | 1 |
| Usb 3 2 Gen 1 Connectors | 2 |
| Number Of Hd Ds Supported | 4 |
| Motherboard Chipset Family | Intel |
| Compatible Processor Series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Front Panel Audio Connector | Yes |
| Peripheral Power Connectors | 1 |
| Pci Express X1 Gen 3 X Slots | 2 |
| Number Of Sata Iii Connectors | 4 |
| Pci Express X16 Gen 4 X Slots | 1 |
| Pci Express X16 Gen 5 X Slots | 1 |
| Supported Storage Drive Types | HDD & SSD |
| Number Of Chassis Fan Connectors | 3 |
| Number Of Storage Drives Supported | 7 |
| Supported Storage Drive Interfaces | M.2, SATA III |
| Usb 3 2 Gen 1 Type A Ports Quantity | 1 |
| Usb 3 2 Gen 2 Type A Ports Quantity | 2 |
| Windows Operating Systems Supported | Windows 10, Windows 11 |
| Usb 3 2 Gen 2x2 Type C Ports Quantity | 1 |
