Asus

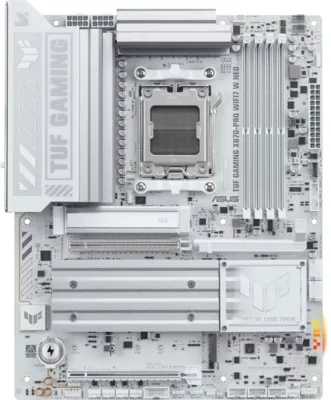

ASUS TUF GAMING X870-PRO WIFI7 W NEO
MPN: 90MB1NY0-M0EAY0
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- ATX formátum
- AM5 kompatibilitás
Árelőzmények
Specifikáció
| Wifi | Wi-Fi 7 (802.11be) |
| Foglalat | AM5 |
| Chipset | X870 |
| M2 csatlakozó | 4 |
| Memória típus | DDR5 |
| Memóriahelyek | 4 |
| Max RAM | 256 GB |
| SATA csatlakozó | 2 |
| Form | ATX |
| Max RAM frekv | 9600 MHz |
| PCIe | PCIe 4.0 |
További Specifikáció
| Bios Type | UEFI AMI |
| Bluetooth | Yes |
| Audio Chip | Realtek ALC1220P |
| Raid Levels | 0, 1, 5, 10 |
| Ethernet Lan | Yes |
| Raid Support | Yes |
| Component For | PC |
| Product Colour | White |
| Memory Channels | Dual-channel |
| Bios Memory Size | 512 Mbit |
| Bluetooth Version | 5.4 |
| Clear Cmos Button | Yes |
| Cpu Fan Connector | Yes |
| Ecc Compatibility | ECC & Non-ECC |
| Unbuffered Memory | Yes |
| Usb 2 0 Connectors | 3 |
| 12v Power Connector | Yes |
| Atx Power Connector | Yes |
| Eps Power Connector | Yes |
| Hdmi Ports Quantity | 1 |
| Audio Output Channels | 7.1 channels |
| Wlan Controller Model | Realtek RTL8922AE |
| Usb 2 0 Ports Quantity | 1 |
| 1st M2 Largest Key Size | 2280 |
| Ethernet Interface Type | 5 Gigabit Ethernet |
| Number Of Com Connectors | 1 |
| Usb 3 2 Gen 1 Connectors | 1 |
| Motherboard Chipset Family | AMD |
| Usb 3 2 Gen 2x2 Connectors | 1 |
| Chassis Intrusion Connector | Yes |
| Compatible Processor Series | AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series |
| Front Panel Audio Connector | Yes |
| Usb4 Gen 3x2 Ports Quantity | 2 |
| Number Of Cpu Fan Connectors | 1 |
| Pci Express X16 Gen 4 X Slots | 1 |
| Supported Storage Drive Types | HDD & SSD |
| Number Of Water Pump Connectors | 1 |
| Number Of Chassis Fan Connectors | 4 |
| Usb 3 2 Gen 1 Type A Ports Quantity | 4 |
| Usb 3 2 Gen 2 Type A Ports Quantity | 3 |
| Windows Operating Systems Supported | Windows 11 |
