ASRock

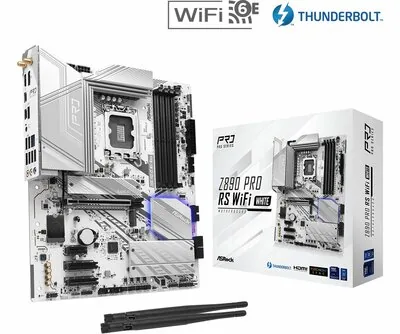

ASRock Z890 Pro RS WiFi White

MPN: Z890 PRO RS WIFI WHITE

Build infó

Ajánlott build

PC konfigurációkhoz

Illeszkedés

  • ATX formátum
  • LGA1851 kompatibilitás

Árelőzmények

Specifikáció

WifiWi-Fi 6E
FoglalatLGA1851
ChipsetZ890
M2 csatlakozó4
Memória típusDDR5
Memóriahelyek4
Max RAM256 GB
SATA csatlakozó4
FormATX
Max RAM frekv9066 MHz
PCIe5.0

További Specifikáció

Lan Speed2.5 Gigabit
Os SupportMicrosoft Windows® 11 64-bit
Audio CodecRealtek ALC897
Cpu SupportIntel® Core™ Ultra Processors (Series 2)
M2 Slot Key E1 x M.2 Socket (Key E)
Fan Connectors2 x CPU Fan Connectors (4-pin), 5 x Chassis Fan Connectors (4-pin), 1 x AIO Pump Fan Connector (4-pin)
Raid Support M2RAID 0, RAID 1, RAID 5 and RAID 10
Rgb Led Headers1 x RGB LED Header, 3 x Addressable LED Headers
Pcb Copper Layer2oz Copper PCB
Tápcsatlakozó1 x 24 pin ATX, 2 x 8 pin 12V
Bluetooth Version5.3
M2 Slot M2 4 TypeSATA3 6.0 Gb/s & PCIe Gen4x4
Memory Oc SupportXMP 3.0
Memory TechnologyDual Channel DDR5
Raid Support SataRAID 0, RAID 1, RAID 5 and RAID 10
Thunderbolt Ports2 x Thunderbolt™ 4/USB4 Type-C
Pcie Slots Chipset2 x PCIe 4.0 x4, 1 x PCIe 4.0 x1
Usb Rear Panel Gen12
Usb Rear Panel Gen21
Usb Rear Panel Usb24
Graphics Output HdmiHDMI 2.1
Usb Front Panel Gen14
Usb Front Panel Gen20
Usb Front Panel Usb24
Usb Rear Panel Gen2x20
Usb Rear Panel Type A1 x USB 3.2 Gen2 Type-A
Wireless Lan Standard802.11axe
Form Factor Dimensions12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Usb Front Panel Gen2x21
Usb Front Panel Type C1 x USB 3.2 Gen2x2 Type-C
M2 Slot M2 1 Pcie VersionPCIe Gen5x4
M2 Slot M2 2 Pcie VersionPCIe Gen4x4
M2 Slot M2 3 Pcie VersionPCIe Gen4x4
Graphics Output DisplayportDisplayPort 1.4
