ASRock

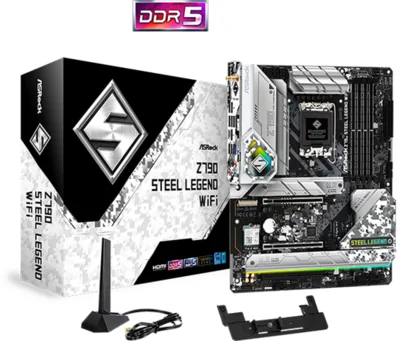

ASRock Z790 Steel Legend WiFi
MPN: Z790 STEEL LEGEND WIFI
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- ATX formátum
- LGA1700 kompatibilitás
Árelőzmények
Specifikáció
| Wifi | Wi-Fi 6E |
| Foglalat | LGA1700 |
| Chipset | Z790 |
| M2 csatlakozó | 5 |
| Memória típus | DDR5 |
| Memóriahelyek | 4 |
| Max RAM | 256 GB |
| SATA csatlakozó | 8 |
| Form | ATX |
| Max RAM frekv | 7200 MHz |
| PCIe | 5.0 |
További Specifikáció
| Lan | Realtek 2.5G LAN |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio |
| Bluetooth | 5.3 |
| Os Support | Microsoft Windows® 10 64-bit / 11 64-bit |
| Pcie Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 |
| Power Phase | 16+1+1 |
| M2 Slot Key E | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Fan Connectors | 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin), 5 x Chassis/Water Pump Fan Connectors (4-pin) |
| Rear Usb Ports | 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2 Type-A, 8 x USB 3.2 Gen1 |
| Front Usb Ports | 1 x USB 3.2 Gen2x2 Type-C, 4 x USB 3.2 Gen1, 3 x USB 2.0 |
| Raid Support M2 | RAID 0, RAID 1 and RAID 5 |
| Raid Support Sata | RAID 0, RAID 1, RAID 5 and RAID 10 |
| Atx Power Connector | 1 x 24 pin |
| Cpu Power Connectors | 2 x 8 pin |
| Form Factor Dimensions | 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Graphics Output Options | 1 HDMI, 1 DisplayPort, eDP |
| Supported Cpu Generations | 14th, 13th & 12th Gen Intel® Core™ Processors |
| Thunderbolt Aic Connector | 1 x Thunderbolt™ AIC Connector (5-pin) |
