ASRock

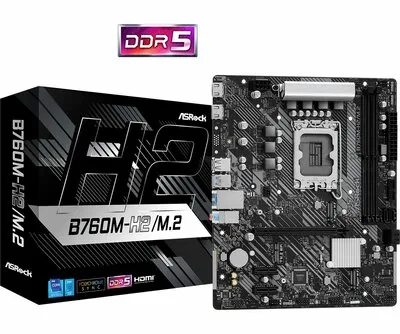

ASRock B760M-H2/M.2
MPN: 90-MXBN00-A0UAYZ
Build infó
Ajánlott build
PC konfigurációkhoz
Illeszkedés
- mATX formátum
- LGA1700 kompatibilitás
Árak webshopokban
Legjobb ár
24 580 Ft
MegnézemÁrelőzmények
Specifikáció
| Foglalat | LGA1700 |
| Chipset | B760 |
| M2 csatlakozó | 2 |
| Memória típus | DDR5 |
| Memóriahelyek | 2 |
| Max RAM | 128 GB |
| SATA csatlakozó | 4 |
| Form | mATX |
| Max RAM frekv | 7200 MHz |
| PCIe | 4.0 |
További Specifikáció
| Lan | Dragon 2.5G LAN |
| Usb 2.0 | 6 |
| Bios Type | 128Mb AMI UEFI Legal BIOS with GUI support |
| Lan Speed | 2.5 Gigabit |
| Audio Codec | Realtek ALC897 |
| Power Phase | 5+1+1 |
| Hdcp Version | 2.3 |
| Hdmi Version | 2.1 |
| Raid Support | RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supported Os | Microsoft Windows® 10 64-bit / 11 64-bit |
| Lan Controller | Dragon RTL8125BG |
| Rgb Led Header | 1 |
| Spi Tpm Header | 1 |
| Usb 2.0 Headers | 2 |
| Memory Technology | ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) |
| Cpu Fan Connectors | 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) |
| Pcie Slots Chipset | 2 x PCIe 3.0 x1 |
| Usb Esd Protection | Supported |
| Atx Power Connector | 1 x 24 pin |
| Cpu Power Connector | 1 x 8 pin 12V |
| Usb 3.2 Gen1 Header | 1 |
| Usb 3.2 Gen1 Type A | 6 |
| Max 4k Resolution Hz | 60Hz |
| Graphics Architecture | Intel® Xe Graphics Architecture (Gen 12) |
| M2 Slot Key E Support | type 2230 WiFi/BT PCIe WiFi module |
| M2 Slot Key M Support | type 2260/2280 PCIe Gen4x4 |
| Rear Panel Rj45 Ports | 1 |
| Chassis Fan Connectors | 2 x Chassis/Water Pump Fan Connectors (4-pin) |
| Form Factor Dimensions | 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
| Addressable Led Headers | 3 |
| Graphics Output Options | 2 HDMI |
| Supported Intel Features | Intel® Hybrid Technology, Intel® Turbo Boost Max 3.0 Technology, Intel® Thermal Velocity Boost (TVB), Intel® Adaptive Boost Technology (ABT) |
| Rear Panel Hd Audio Jacks | Line in / Front Speaker / Microphone |
| Supported Cpu Generations | 14th, 13th & 12th Gen Intel® Core™ Processors |
| Front Panel Audio Connector | 1 |
